New Zealand - 579 kwp single pillar ground mount

Project Overview

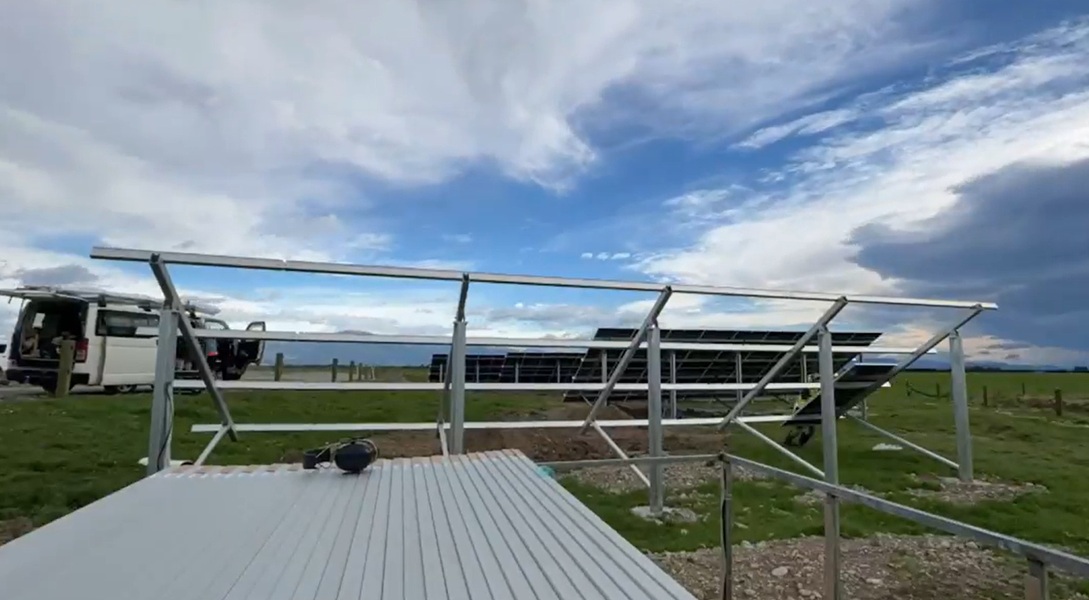

The 579 kWp Single-Pillar Ground-Mount Solar Project in New Zealand is an efficient, utility-scale solution designed to maximize land productivity while adhering to stringent local structural and electrical standards. By utilizing a "Steel Column + Steel Purlin + Aluminum Rail" architecture, this project balances high durability with the flexibility needed for New Zealand’s diverse terrain and wind conditions.

The Challenge

• High Wind Loading: New Zealand’s geography often subjects structures to intense wind forces. Solar arrays, particularly large-scale ones, must be engineered to comply with AS/NZS 1170.2 standards. The single-pillar design is inherently more sensitive to torsional (twisting) forces than multi-post systems. If the structure's natural frequency aligns with vortex-shedding frequencies, it can lead to resonant excitation, which may cause joint failures or structural fatigue over time.
• Variable Soil Conditions: New Zealand’s diverse soil types (ranging from volcanic ash and soft clays to rocky substrates) pose a direct challenge to foundation stability.
• Maintenance of Moving/Joint Parts: Single-pillar systems rely heavily on the integrity of their connection points. Common issues include loose fasteners caused by vibration or thermal expansion. Regular torque inspections are essential to prevent joint failures that could lead to module displacement.

Our Solution

To successfully implement a 579 kWp single-pillar ground-mount project in New Zealand, our solution integrates high-strength materials, advanced structural engineering, and strict compliance with local standards.

We utilize hot-dip galvanized carbon steel for the primary columns and purlins. This provides the necessary stiffness to resist twisting and lateral shear loads caused by high-velocity winds.

All carbon steel components are hot-dip galvanized (ISO 1461) to provide a long-term sacrificial zinc layer. Rails use high-quality anodized aluminum for superior resistance to salt-air and moisture.

The Result & Impact
