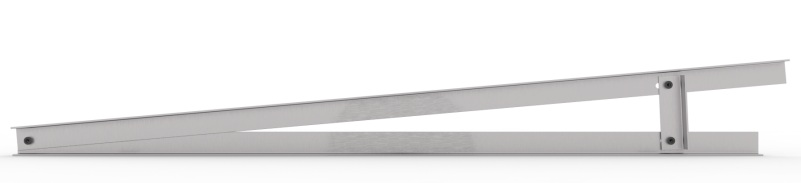

A highly adaptable aluminum triangle frame mounting kit designed for secure solar panel installation on both flat roofs and ground surfaces. Engineered for precision and built to last, this versatile bracket delivers seamless, secure installation on any angled roof. Its advanced triangular design provides exceptional stability and optimal weight distribution, while the lightweight, heavy-duty construction guarantees years of dependable performance.
Item No :
SN-FR-102Color :
Silver / Natural AluminumShipping Port :
XiamenLead Time :
10-15 DaysMaterial :
AL6005-T5Key Features
Maximum Flexibility
The Triangle and MultiAngle systems are compatible with virtually all flat roofs as well as trapezoidal sheet metal roofing.
They offer versatile installation options, including loose ballast, integration into ballast elements, or anchoring via gravel or green roof substrates on PE sheets.
Customizable Tilt Angles
Achieve optimal energy yield by adjusting the installation angle to fit your specific location and roof type.
The Triangle System supports fixed angles from 10° to 30°, while the MultiAngle System allows for fully customized adjustments.
Universal Module Orientation
Panels can be installed in either portrait or landscape orientation. For the Triangle/MultiAngle system, landscape mounting is easily achieved using the AddOn component.
Additionally, the MultiAngle System supports corner-clamping for seamless landscape configurations.
Ideal Applications
Commercial Buildings: Warehouses, factories, retail centers, and office buildings.
Residential Properties: Homes and apartment buildings with flat or low-slope roofs.
Institutional Facilities: Schools, hospitals, and government buildings.
Installation Site: Flat Roof (Concrete, Bitumen, Membrane, etc.)
Tilt Angle: 10° - 30° (Adjustable)
Wind Load: Up to 60 m/s (Customize based on your specs)
Snow Load: Up to 1.4 KN/m² (Customize based on your specs)
Material: High-grade Aluminum Alloy & Stainless Steel 304
Surface Treatment: Anodized
Warranty: 10-12 Years (Customize based on your specs)
The Solar Flat Roof Mounting System is an engineered solution designed for secure and efficient solar panel installation on commercial and residential flat roofs. Our non-penetrating, ballasted design protects your roof's integrity while maximizing energy output. Built with high-grade, corrosion-resistant aluminum, this system ensures long-lasting durability in diverse weather conditions. It features an adjustable tilt angle to optimize sunlight capture and a streamlined, modular design for fast, cost-effective installation. Ideal for both small-scale and large commercial projects, our flat roof system delivers reliable performance and exceptional value for your solar investment.
