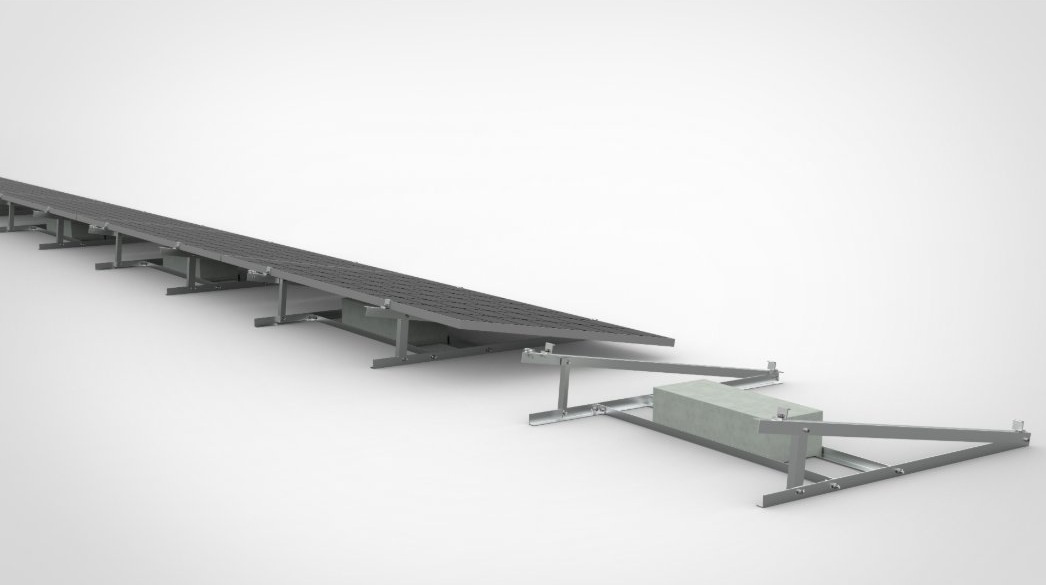

The Solar Flat Roof Mounting System is an engineered solution designed for secure and efficient solar panel installation on commercial and residential flat roofs. Our non-penetrating, ballasted design protects your roof's integrity while maximizing energy output. Built with high-grade, corrosion-resistant aluminum, this system ensures long-lasting durability in diverse weather conditions. It features an adjustable tilt angle to optimize sunlight capture and a streamlined, modular design for fast, cost-effective installation. Ideal for both small-scale and large commercial projects, our flat roof system delivers reliable performance and exceptional value for your solar investment.
Item No :
SN-FR-101Color :
Silver / Natural AluminumLead Time :
10-15 DaysMaximize your solar potential without compromising your roof. The Solar Flat Roof Mounting System is a state-of-the-art, non-penetrating solution meticulously engineered for commercial and residential flat roofs. Designed to deliver superior stability, optimal energy generation, and streamlined installation, it is the definitive choice for flat roof solar arrays.
Key Features & Benefits

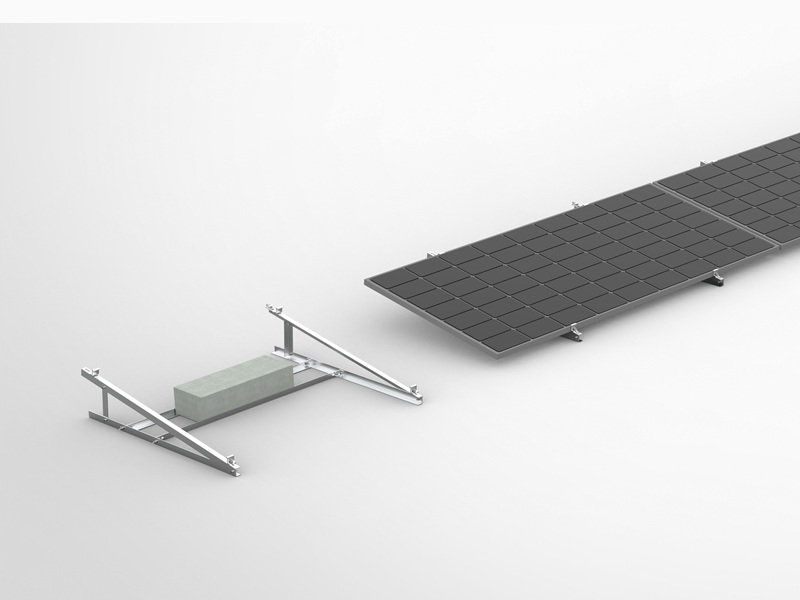

1. Non-Penetrating, Ballasted Design
Protect your investment and your building's integrity. Our system relies on a carefully calculated ballasted design, utilizing weighted blocks to secure the array. This eliminates the need for roof penetrations, guaranteeing a completely leak-proof installation and preserving your roof warranties.
2. Uncompromising Durability & Weather Resistance
Engineered to withstand the elements, the system is constructed from high-grade, corrosion-resistant aluminum alloy (e.g., AL6005-T5) and stainless steel components. This ensures exceptional longevity and structural integrity, even in harsh weather conditions, including high wind and heavy snow loads.
3. Optimized Energy Yield with Adjustable Tilt Angles
Capture the maximum amount of sunlight year-round. Our system offers customizable tilt angles (typically ranging from 10° to 30°), allowing you to precisely orient your solar panels for optimal energy generation based on your specific geographic location and seasonal variations.
4. Rapid, Modular Installation
Save time and reduce labor costs. The streamlined, modular design features pre-assembled components that simplify the installation process. The intuitive layout allows for rapid deployment, minimizing disruption to your operations or daily life.
5. Aerodynamic Engineering
The low-profile, aerodynamic design minimizes wind lift and drag, reducing the amount of ballast weight required. This lessens the overall load on your roof structure while maintaining exceptional stability.
6. Versatile Compatibility
Our mounting system is universally compatible with all standard framed and frameless solar panels on the market, offering you complete flexibility in your hardware choices.
Ideal Applications
Commercial Buildings: Warehouses, factories, retail centers, and office buildings.
Residential Properties: Homes and apartment buildings with flat or low-slope roofs.
Institutional Facilities: Schools, hospitals, and government buildings.
Installation Site: Flat Roof (Concrete, Bitumen, Membrane, etc.)
Tilt Angle: 10° - 30° (Adjustable)
Wind Load: Up to 60 m/s (Customize based on your specs)
Snow Load: Up to 1.4 KN/m² (Customize based on your specs)
Material: High-grade Aluminum Alloy & Stainless Steel 304
Surface Treatment: Anodized
Warranty: 10-12 Years (Customize based on your specs)
A highly adaptable aluminum triangle frame mounting kit designed for secure solar panel installation on both flat roofs and ground surfaces. Engineered for precision and built to last, this versatile bracket delivers seamless, secure installation on any angled roof. Its advanced triangular design provides exceptional stability and optimal weight distribution, while the lightweight, heavy-duty construction guarantees years of dependable performance.
