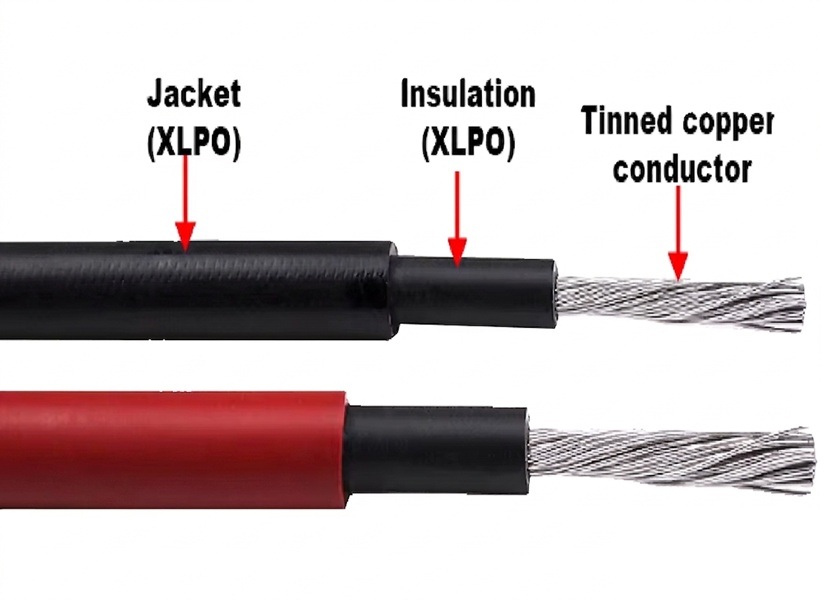

Engineered specifically for photovoltaic (PV) applications up to DC 1800V, the PV1-F Solar Cable is the premier choice for interconnecting solar panels, inverters, and distribution systems. Featuring a high-quality tinned stranded copper conductor and premium cross-linked polyolefin insulation, this cable delivers exceptional, long-term reliability in challenging solar environments. Fully optimized for outdoor exposure, the PV1-F guarantees rugged durability and peak performance for your solar energy infrastructure.
Item No :
SN-SC-PV1-F-DC1800VOrder(MOQ) :
1000 metersProduct Origin :
ChinaColor :
Red, BlackShipping Port :
XiamenLead Time :
7 daysMaterial :
Tinned stranded copper and insulated with specially cross-linked polyolefinSpecification:
|
Rated voltage |
DC 1.5KV / AC 0.6/1KV |
| Test voltage |
6000V |
| Workign temperature |
-40℃~125℃ |
| Short circuit temperature |
280℃ 5s |
| Bending radius |
D＜8mm 4D; D≥8mm 6D |
| Life Period |
≥25 years |
|
Standard |
2PfG 1169/08.07、EN 50618:2014 |
| No of Cores x Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight | Current Carrying Capacity in Air |
| # x mm2 | mm | kg/Km | Amps |
| 1 x 2.5 | 4.5 | 8.21 | 41 |
| 1 x 4.0 | 5.2 | 5.09 | 55 |
| 1 x 6.0 | 5.9 | 3.39 | 70 |
