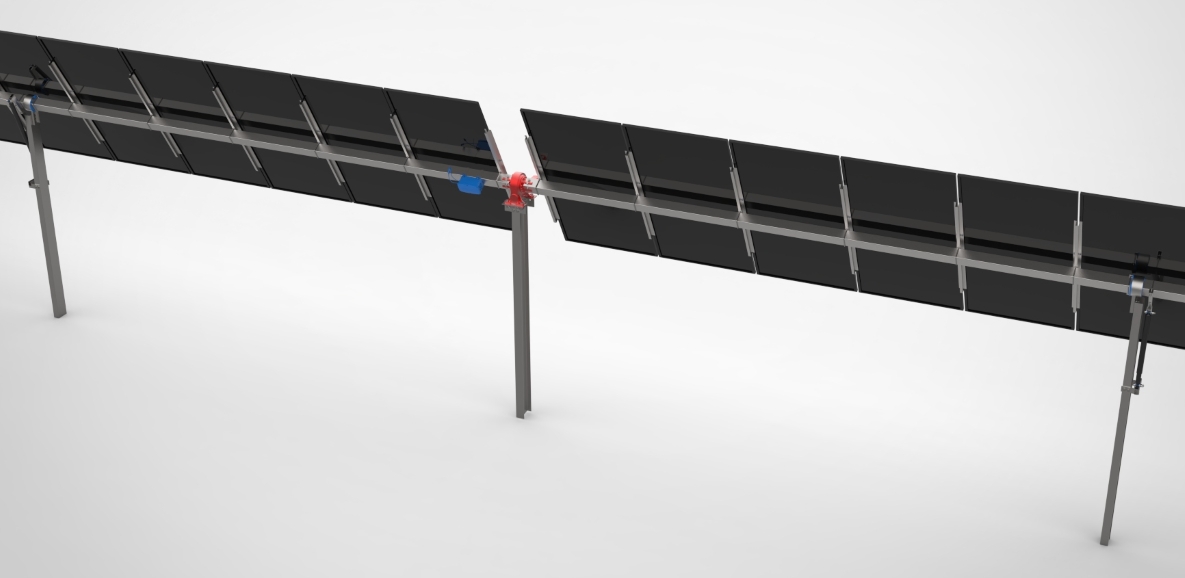

Horizontal Single axis 1P solar tracker

Our innovative single-axis tracker automatically rotates solar panels to follow the sun throughout the day. By continuously maintaining the optimal angle to the sun, it maximizes energy production—making it the ultimate solution for modern utility-scale solar power plants.

Item No :
SSR-1P
Order(MOQ) :
100 kwp
Product Origin :
China
Shipping Port :
Xiamen & Tianjin
Lead Time :
20-35 days
Material :
Galvanized Steel
Basic Wind Speed :
60m/s

Product Description

Advantages:

Higher Energy Yield (Bifacial Optimization)

The 1P design is the gold standard for bifacial module performance. This design maximizes the Ground-to-Module albedo (reflected light), often leading to a 3% to 5% higher energy yield compared to systems that create more significant rear-side shading.

Reduced Levelized Cost of Electricity (LCOE)

By combining lower material costs with high energy performance, 1P trackers effectively drive down the LCOE. The streamlined engineering requires less steel per megawatt and faster installation times significantly reducing the initial CAPEX of the solar power plant.

Faster and More Cost-Effective Installation

1P trackers are designed for modularity and rapid assembly. The components are generally lighter and easier to handle compared to the heavy-duty components of a 2P system.

Advanced Reliability and Lower Downtime

If one row experiences a mechanical or electrical issue, it does not affect the performance of the entire solar array; Each row can be programmed to independently track or move into "stow mode" (safeguard position) based on localized wind sensors.

Specifications

Material	Axis Tube: Rectangular-profile Steel Drive Column: H-profile steel Standard column/Damper Column: C-profile steel Purlin: Omega-profile steel
Coating	H-profile: Hot-Dip Galvanizing (HDG), C-profile steel: Zinc-Aluminum-Magnesium (ZAM)
Allowable Wind Speed	Up to 60 m/s
Design Standards	ASCE 7-10
Configurations	1 PV module in portrait
PV Module Number	Up to 90 modules
Range of Motion	+/- 55 Degrees
Foundation Type	Compatible with all foundation types (driven pile, concrete, ground screw, pile embedded in concrete)
Tracking Method	Astronomical Algorithm with Backtracking
Tracker Controller	String-Powered with Backup Battery, Self/AC-Powered Optional
Communications	Wireless LoRa Network
Slope Tolerance	15% Continuous North-South, Unlimited East-West
Drive Type	Single Point Slew drive
Motor Type	24V DC Motor
Sensor Package	Wind Standard, Snow & Flood Optional
Defensive Stow	Yes
Operating Temperature	-40℃~ 60℃
Ground Coverage Ratio (GCR)	No Limit, 25-50% Typical
Service Life	30 years
Warranty	10 years for structure parts and 5 years for tracker part
Engineering Services	BOM, Drawings, Structural calculation report, Foundation Drawing, Assembly Manual
